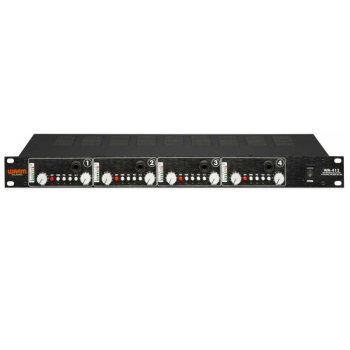

Warm Audio WA-412 4 Channel Mic Preamp w/DI

$34 / Weekend $75 / Month

Key Features:

  • 4 Channel Microphone Preamplifier + Instrument DI
  • Fully discrete, transformer coupled, through-hole component topology
  • Altran USA custom wound, premium input and output transformers
  • X520 discrete op-amp in every channel, socketed for convenience. Can be user-replaced with most 6 pin, discrete op-amps for varying flavor & tone
  • 65db of gain
  • Inputs - Microphone XLR & Active Instrument 2Meg ohm HI-Z
  • Outputs - Transformer balanced XLR & TRS
  • TONE button – Input impedance switches from 600 ohms to 150 ohms (affects the tone of both the mic and HI-Z inputs)
  • -20db pad - pads both mic and instrument DI inputs
  • Self noise: <-90dB (nominal)
  • Frequency response: 20hz to 20khz <+/-0.25dB (TONE button out), 20hz to 20khz +/-2dB (TONE button in)
  • +48 volt phantom power
  • LED metering
  • Output trim knob for precise level control and tone sculpting
  • Internal power supply (grounded, 3 pin IEC cord)
