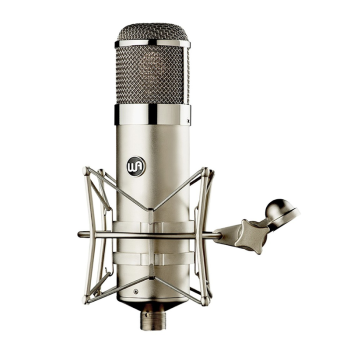

Warm Audio WA-47 Large-diaphragm Tube Condenser Mic

$25 / Weekend $54 / Month

Key Features

  • The WA-47 is an all vacuum tube, large diaphragm, transformer balanced, multi-pattern (9), large condenser microphone (based on the classic ‘47 that has been used on countless hit records for the last 50+ years)
  • Custom true '47 capsule reproduction (k47 style)
  • Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film)
  • TAB-Funkenwerk (AMI) USA output transformer
  • JJ Slovak 5751 vacuum tube
  • Gotham 5 meter GAC-7, 7-pin tube microphone cable
  • Wima, Solen French, and Polystyrene capacitors
  • 9 polar patterns for dynamic use- Cardioid, Omni, figure-of-eight + 6 mixed patterns
  • Performance specs:
    • • Self-noise: 11dBA
    • Dynamic range: 130dBA
    • Maximum SPL: 140dB (0.5% THD)
    • requency Range: 20 Hz~20 kHz
    • Output Impedance: 200 ohms
    • Rated Load Impedance: =2kOhms
    • S/N Ratio: 82dBA
    • Equivalent Noise: 10dBA (IEC651)
