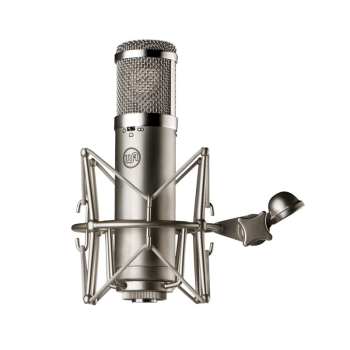

Warm Audio WA-47JR U47 Style FET Large Condensor Mic

$9 / Weekend $18 / Month

Key Features

  • The WA-47jr is an FET transformerless large diaphragm condenser microphone (based on the classic 47 that has been used on countless hit records for the last 50+ years)
  • Custom true '47 capsule reproduction (k47 style)
  • Capsule makeup: Gold sputtered, dual large diaphragm, single backplate, 6 microns NOS mylar (PET film)
  • Fully discrete signal path, Toshiba FET’s, Wima film capacitors, Panasonic electrolytic capacitors
  • 3 Polar Patterns: Cardioid, figure-of-eight, and omnidirectional.
  • Performance specs:
    • High-pass filter: 70Hz
    • Pad: -10db
    • Self-noise: 9dBA
    • Dynamic range: 138dBA
    • Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
    • Frequency Range: 20 Hz~20 kHz
    • Sensitivity: 10mV/Pa or -40dB
    • Output Impedance: 100 ohms
    • Rated Load Impedance: =1kOhms
    • S/N Ratio: 85dBA (IEC651)
    • Equivalent Noise: 9dBA (IEC651)
    • Dynamic Range: 138dBA (IEC651)
    • 48v phantom powered
