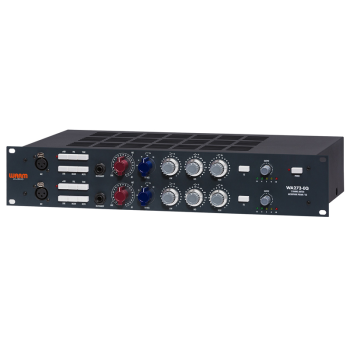

Warm Audio WA273-EQ 2ch Neve Style Preamp w/EQ

Key Features

• Dual Channel, Class A, '73-style British Microphone Preamp with EQ
• UK made Carnhill Transformers
• UK made - Blore Edwards EQ dual-concentric switch potentiometers
• Hand Wired, hand assembled
• 80dB of gain - resistor stepped gain switch
• Fully discrete
• TONE button - Changes input transformer impedance for varying tone
• Polarity switch
• 48v phantom power
• Inductor based 3 band EQ
• Low Band Boost/Cut - 35, 60, 110, 220 Hz
• Mid Band Boost/Cut - 360, 700, 1600, 3200, 4800, 7200 Hz
• High Band Boost/Cut - 10, 12, 16 kHz
• Additional high band frequency EQ points added (compared to vintage 1073)
• 4 position inductor based hipass filter - 50, 80, 160, 300 Hz
• XLR mic inputs (front & back)
• Line level TRS input
• TS Send/Receive insert jacks
• XLR & TRS line level outputs
• Direct In, instrument input
• Output control
• Led level indication
• Freq response 20Hz - 20kHz +/-.5 dB
• 19" rackable
• Internal IEC 115v/230v power inlet
