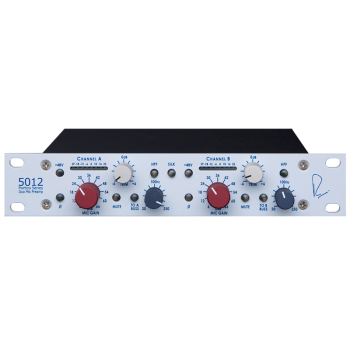

5012-H Dual Neve Mic Pre

$45 / Weekend $100 / Month

Key Features:

  • 2-channel Microphone Preamp with Phantom Power and a "Silk" Circuit for Vintage-style Tone
  • Input: Balanced, using "Transformer-Like-Amplifier" (T.L.A.) with toroidal Common Mode Rejection Low Pass Filter
  • Input Impedance: 10,000 Ohms + or - 20%
  • High Pass Filter: Swept Frequency continuously variable from 20Hz to 250Hz.
  • Slope: 12dB/Octave.
  • Gain: Switched Gain from Unity to +66dB in 6dB steps.
  • "Trim": Continuously adjustable potentiometer from -6dB to +6dB with reference to setting on the Gain Switch.
  • Maximum Output Level:
  • Balanced and Floating Transformer Output from 20Hz to 40kHz: +25 dBu. (Clips at just over +26 dBu)
  • Mute: Mutes Main Output only. (i.e. Monitor remains "Live")
  • External 15V Supply included with every Portico Series module.
