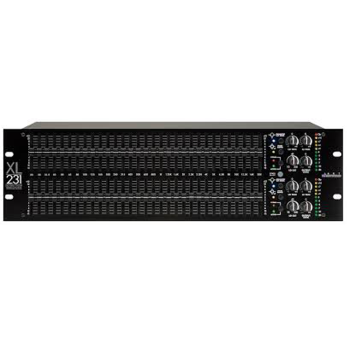

ART XL231 Dual 31 Band Equalizer

$9 / Weekend $21 / Month

Key Features:

  • Dual 31-Band, 1/3 Octave, Graphic EQ
  • Greater than 123dB dynamic range
  • Ultra low noise and high output
  • 40 Volt internal circuitry for added headroom, and line driving capability
  • High and Low frequency "Trim" controls for sweetening overall sound after EQ has been set
  • Enhanced Cut Mode: Up to -18dB narrow band dips
  • Normal and Enhanced Modes also have Half-Scale modes for a total of 4 Boost/Cut modes
  • 10 Segment LED level meters with "Peak-Hold" and clipping indication
  • Constant Q design with interleaved filter banks to reduce band interaction
  • High precision filters with 2% film capacitors, 1% resistors
  • Built-in RFI suppression
  • Grounded center-tapped slide potentiometers for true zero flat position
  • 45mm metal shaft slide potentiometers with center detents, and mixing desk style knobs
  • Automatic relay bypass if power is lost
  • Euroblock detachable barrier strips, XLR, and 1/4 inch phone Ring-Tip-Sleeve balanced inputs and outputs
